How to make Step up booster 1.5V to 3V 5V 9V 12V


 How to make Step up booster 1.5V to 3V 5V 9V 12V

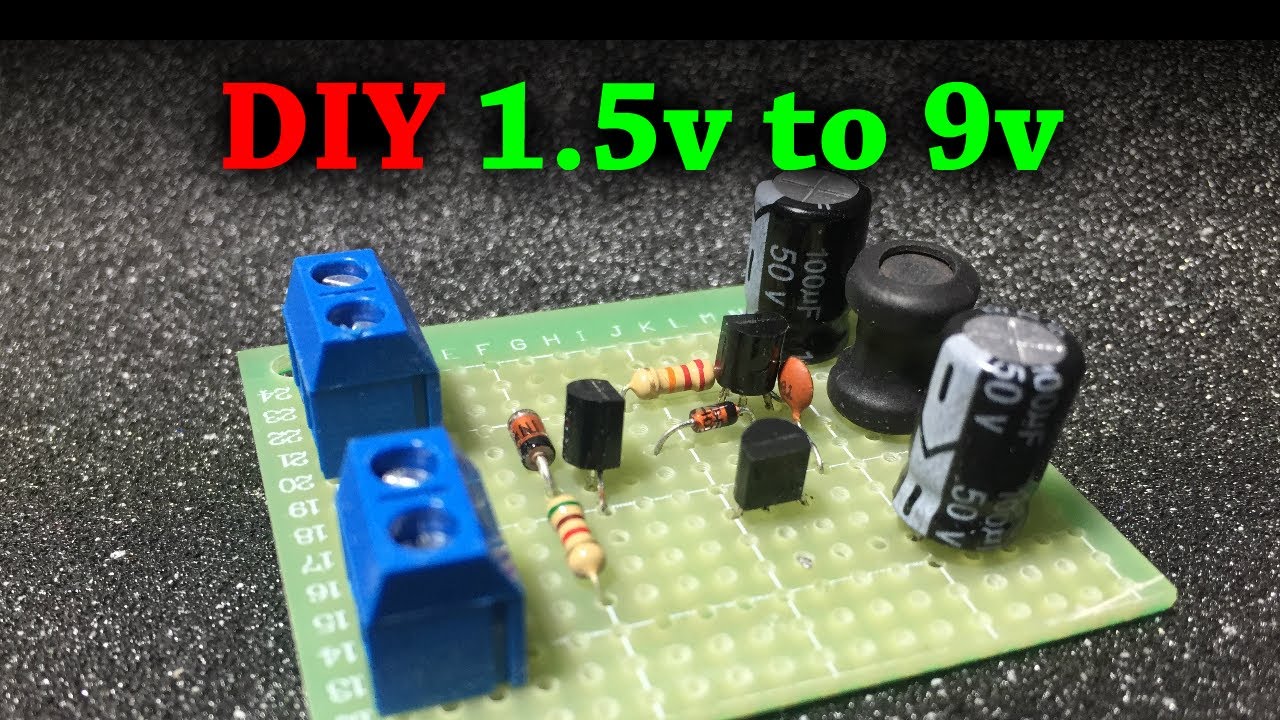

Hi friends, in this video I will show how you can make a boost converter using Ring core. Its a most simple switching power supply that sets its own frequency. and converts DC voltage to AC high frequency voltage. by using The Core of Ferrarite.The Joule Thief Circuit is a voltage booster circuit which converts a constant low voltage input into a periodic output of a higher voltage. This circuit can be most often seen lighting an LED with an almost dead AA battery. The peaks in voltage occur rapidly, causing the LED to flash at a very fast. so we can't see it. but I'm using a Diode and Capacitor to smooth the voltage

In this video i will make a simple Boost Converter That can Work From 3.7V and Boost the voltage Upto 12V.. The MC34063A Series is a monolithic control circuit containing the primary functions required for DC−to−DC converters. These devices consist of an internal temperature compensated reference, comparator, controlled duty cycle oscillator with an active current limit circuit, driver and high current output switch. Boost Converter ic that has Power BJT Inside so we don't need any Extra Transistor or mosfet and it has voltage feedback by adjusting the potentiometer we can get 5V 9V and 12V dc upto 1A more then 1 A The voltage will drops... This circuit works well you can change phone or Run Your WiFi router You can run any device that Consume less then 1A


 How to make Step up booster 1.5V to 3V 5V 9V 12V

Hi friends, in this video I will show how you can make a boost converter using Ring core. Its a most simple switching power supply that sets its own frequency. and converts DC voltage to AC high frequency voltage. by using The Core of Ferrarite.The Joule Thief Circuit is a voltage booster circuit which converts a constant low voltage input into a periodic output of a higher voltage. This circuit can be most often seen lighting an LED with an almost dead AA battery. The peaks in voltage occur rapidly, causing the LED to flash at a very fast. so we can't see it. but I'm using a Diode and Capacitor to smooth the voltage

In this video i will make a simple Boost Converter That can Work From 3.7V and Boost the voltage Upto 12V.. The MC34063A Series is a monolithic control circuit containing the primary functions required for DC−to−DC converters. These devices consist of an internal temperature compensated reference, comparator, controlled duty cycle oscillator with an active current limit circuit, driver and high current output switch. Boost Converter ic that has Power BJT Inside so we don't need any Extra Transistor or mosfet and it has voltage feedback by adjusting the potentiometer we can get 5V 9V and 12V dc upto 1A more then 1 A The voltage will drops... This circuit works well you can change phone or Run Your WiFi router You can run any device that Consume less then 1A
