Panel Board Connection| Three Phase Line
MDB is a panel or enclosure that houses the fuses circuit breakers and ground leakage protection units where the electrical energy which is used to distribute electrical power to numerous individual circuits or consumer points is taken in from the transformer or an upstream panel.
what is change over panel
The changeover panel automatically switches mains electricity from one supply to another, in the event of a fire or mains power failure to ensure continuity of supply to firefighting lifts.
what is 3 phase generator mean
3 phase generators work by producing three separate waves of AC power that operate in a sequence ensuring that there is always a continuous flow of energy and that the power level never dips as it does with single phase generators.

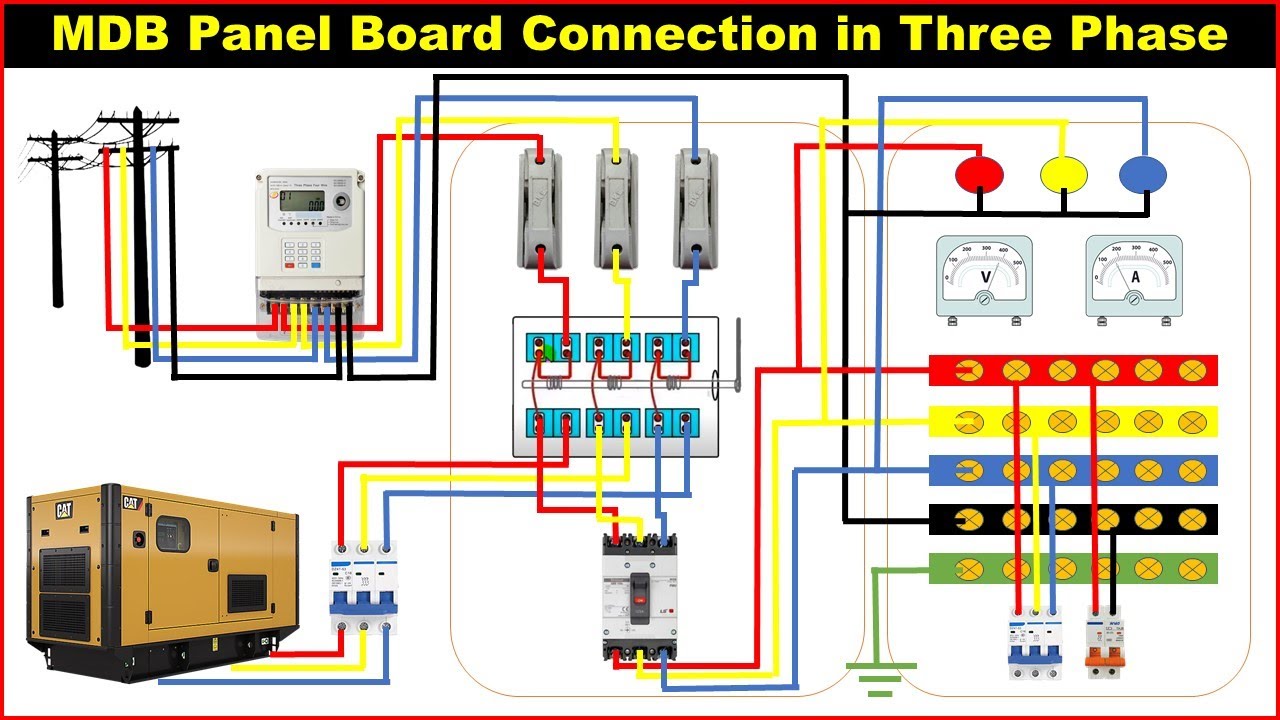

In this video, I try to explain three phase distribution board layout and wiring diagram. Three phase power supply is required, when the Power distribution requirement cannot be handled by a single phase power supply.
Three-phase system can be described as the common method of alternating current power generation, transmission, and distribution. In this system, the current will pass through the three wires, and there will be one neutral wire for passing the fault current to the earth.
Updated Electrical Wiring Color Codes
Phase 1- Brown
Phase 2 - Black
Phase 3 - Gray
Neutral-blue
Protective Earth - Green-and-Yellow
This video shows Main Distribution Boards | Panel Board Wiring Diagram. 3-phase wiring. MDB distribution board (also known as panelboard, breaker panel, or electric panel) is a component of an electricity supply system. that divides an electrical power supply 220V ac line feed into subsidiary circuits while providing a protective fuse or Mcb circuit breaker for each circuit in a common enclosure.
Panel Board Connection| Three Phase Line
MDB is a panel or enclosure that houses the fuses circuit breakers and ground leakage protection units where the electrical energy which is used to distribute electrical power to numerous individual circuits or consumer points is taken in from the transformer or an upstream panel.
what is change over panel
The changeover panel automatically switches mains electricity from one supply to another, in the event of a fire or mains power failure to ensure continuity of supply to firefighting lifts.
what is 3 phase generator mean
3 phase generators work by producing three separate waves of AC power that operate in a sequence ensuring that there is always a continuous flow of energy and that the power level never dips as it does with single phase generators.
In this video, I try to explain three phase distribution board layout and wiring diagram. Three phase power supply is required, when the Power distribution requirement cannot be handled by a single phase power supply.
Three-phase system can be described as the common method of alternating current power generation, transmission, and distribution. In this system, the current will pass through the three wires, and there will be one neutral wire for passing the fault current to the earth.
Updated Electrical Wiring Color Codes
Phase 1- Brown
Phase 2 - Black
Phase 3 - Gray
Neutral-blue
Protective Earth - Green-and-Yellow
This video shows Main Distribution Boards | Panel Board Wiring Diagram. 3-phase wiring. MDB distribution board (also known as panelboard, breaker panel, or electric panel) is a component of an electricity supply system. that divides an electrical power supply 220V ac line feed into subsidiary circuits while providing a protective fuse or Mcb circuit breaker for each circuit in a common enclosure.
