How to Make LED Flasher Circuit Using BD139 Transistor

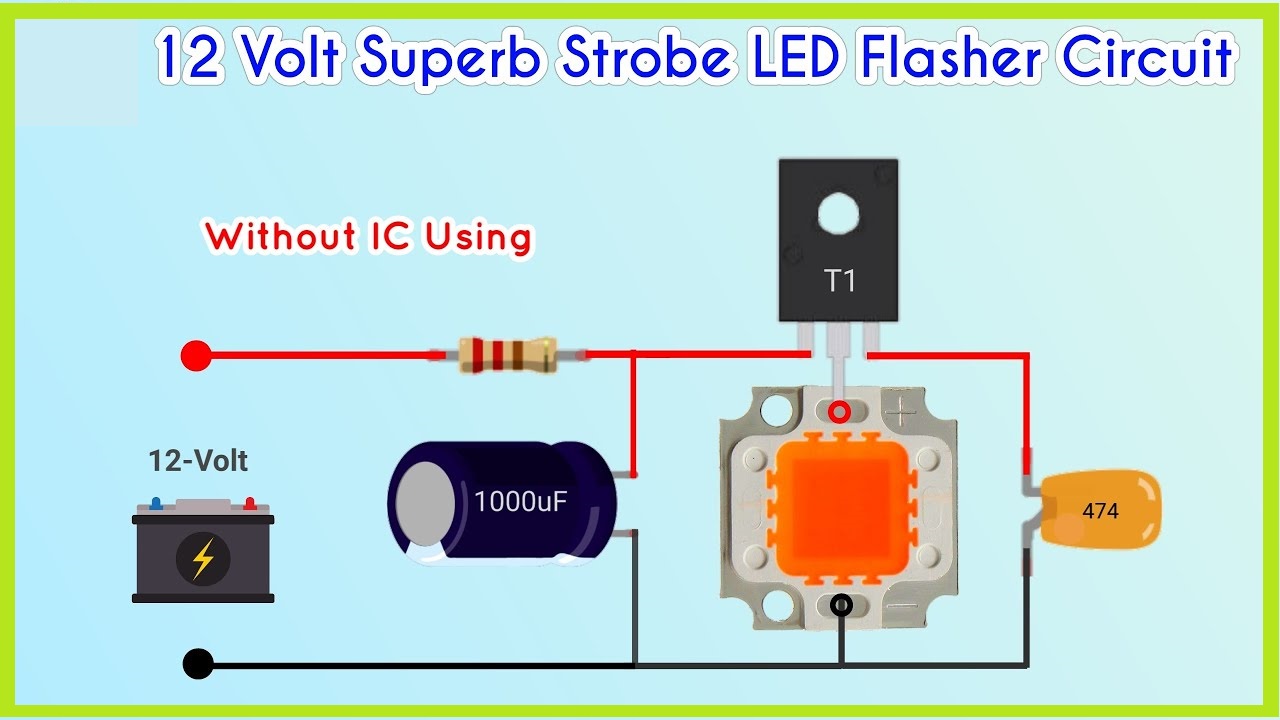

This is the circuit diagram of this project.


Connect all components according to this circuit diagram.

Solder +ve pin of capacitor to Base pin of transistor


and solder -ve pin of capacitor to emmiter pin of the transistor as solder in the picture.

Next we have to solder +ve leg of LED to Collector pin of transistor and


solder -ve pin of LED to -ve of 2200uf capacitor as you can see in the picture.
