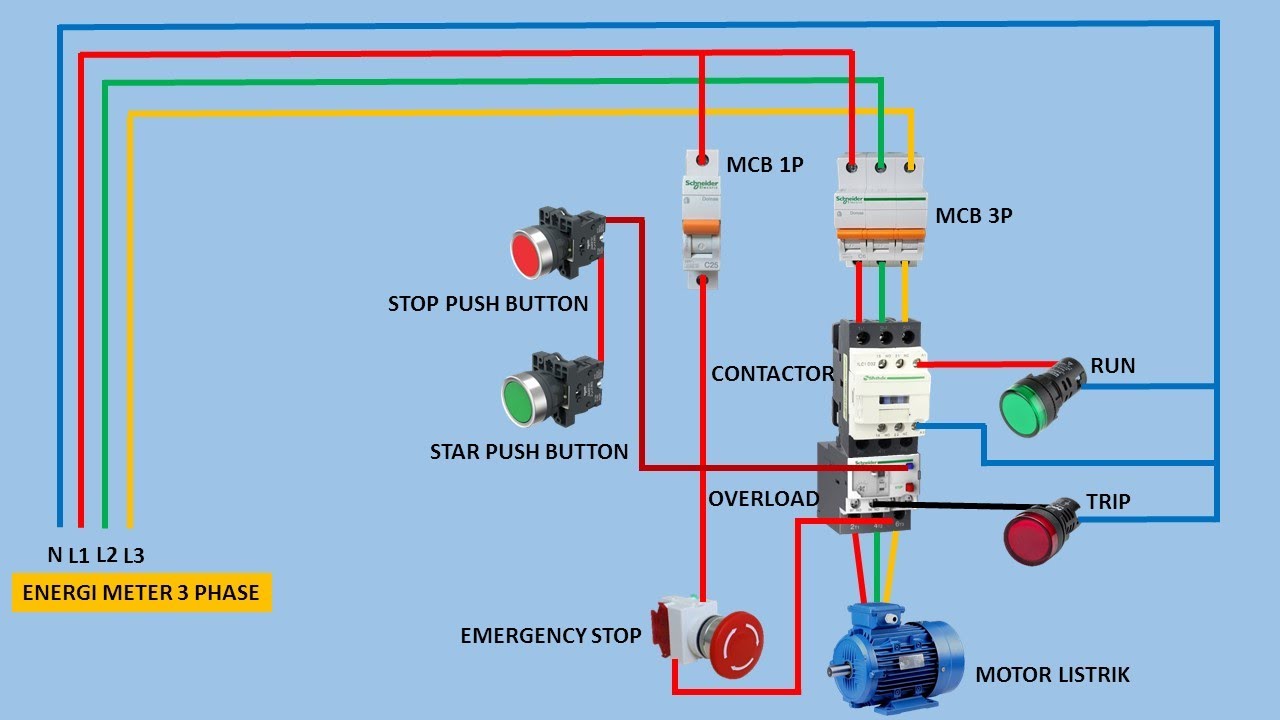

I try to show the field wiring as clearly as I could while at the same time, showing the live wiring schematic. I made this video in response to several comments from viewers who were looking for more clarity. So here is out updated 3 wire start stop circuit video. I describe each of the components involved, such as the motor starter, overload, start pushbutton, stop pushbutton, and control power and how they work. I then screencast a simulated circuit so you can visualize exactly what is happening in the Start-Stop Circuit.three motors starters that are simultaneously controlled by on start stop station. if one overload device trips all three motors stop Running. auxiliary contact are use to automatic sequence control operation.this control circuit use on automation machine
