What is DOL Starter?
A DOL starter (also known as a direct on line starter or across the line starter) is a method of starting a 3 phase induction motor. In a DOL Starter, an induction motor is connected directly across its 3-phase supply, and the DOL starter applies the full line voltage to the motor terminals.
Despite this direct connection, no harm is done to the motor. A DOL motor starter contains protection devices, and in some cases, condition monitoring.

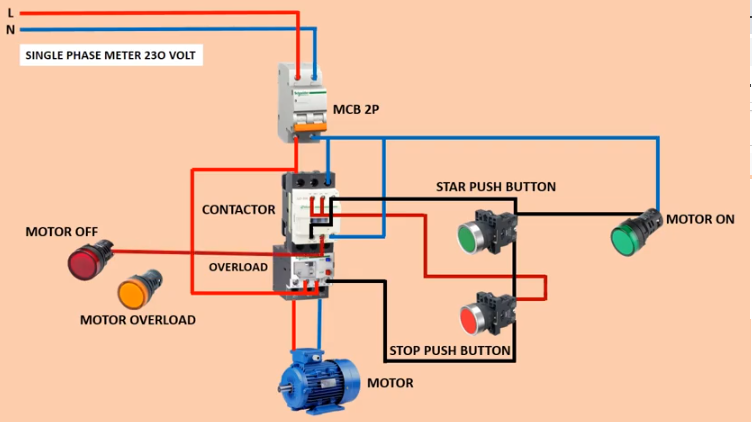

To start the motor, we close the contact by pushing the Green Button, and the full line voltage appears to the motor. A contactor can be of 3 poles or 4-poles. Below given contactor is of 4-pole type.
It contains three NO (normally open) contacts that connect the motor to supply lines, and the fourth contact is “hold on contact” (auxiliary contact) which energizes the contactor coil after the start button is released.
If any fault occurs, the auxiliary coil gets de-energized, and hence the starter disconnects the motor from supply mains.
dol starter connection
What is DOL Starter?
A DOL starter (also known as a direct on line starter or across the line starter) is a method of starting a 3 phase induction motor. In a DOL Starter, an induction motor is connected directly across its 3-phase supply, and the DOL starter applies the full line voltage to the motor terminals.
Despite this direct connection, no harm is done to the motor. A DOL motor starter contains protection devices, and in some cases, condition monitoring.
To start the motor, we close the contact by pushing the Green Button, and the full line voltage appears to the motor. A contactor can be of 3 poles or 4-poles. Below given contactor is of 4-pole type.
It contains three NO (normally open) contacts that connect the motor to supply lines, and the fourth contact is “hold on contact” (auxiliary contact) which energizes the contactor coil after the start button is released.
If any fault occurs, the auxiliary coil gets de-energized, and hence the starter disconnects the motor from supply mains.
