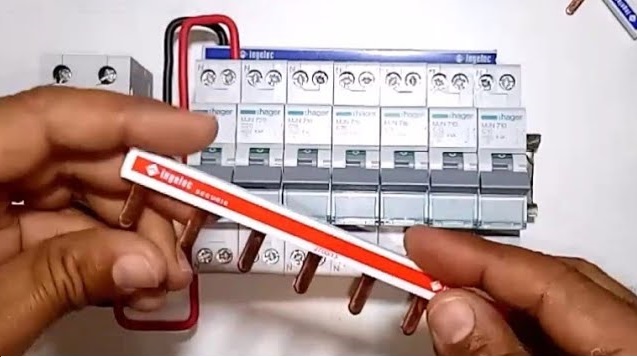

ON VIDEO Connection of an electrical panel easily. DPN circuit breakers



Connection of an electrical panel easily. DPN circuit breakers

An electrical panel ensures the reception and distribution of current from the external network.

 Correctly installed, it guarantees the redistribution of this electricity at the level of all the electrical circuits of a dwelling or a house.

 This electrical cabinet is generally installed at the entrance of an apartment, in a dedicated closet or in the garage.

However, during electrical work, is it possible to install an electrical panel yourself?
Are there easy-to-assemble electrical cabinets?
How to mount your electrical panel alone?

How to choose your electrical panel?

In order to choose the most suitable electrical panel for your own needs, it is necessary to choose between a bare electrical panel or a pre-equipped panel.
 In the first case, the switchboard is an empty framework that will have to be equipped, later, with the modules necessary for its operation. Care must be taken to opt for components that meet the standards.
 The framework is, however, equipped with connection terminals (phase, earth and neutral).

In the second case, the box is equipped with additional modules, which saves time and facilitates the installation of the electrical cabinet.
 The pre-equipped electrical panels are equipped with protection components.
 They can also be customized (addition of lightning arrester, consumption monitoring meters, contactors, etc.).
