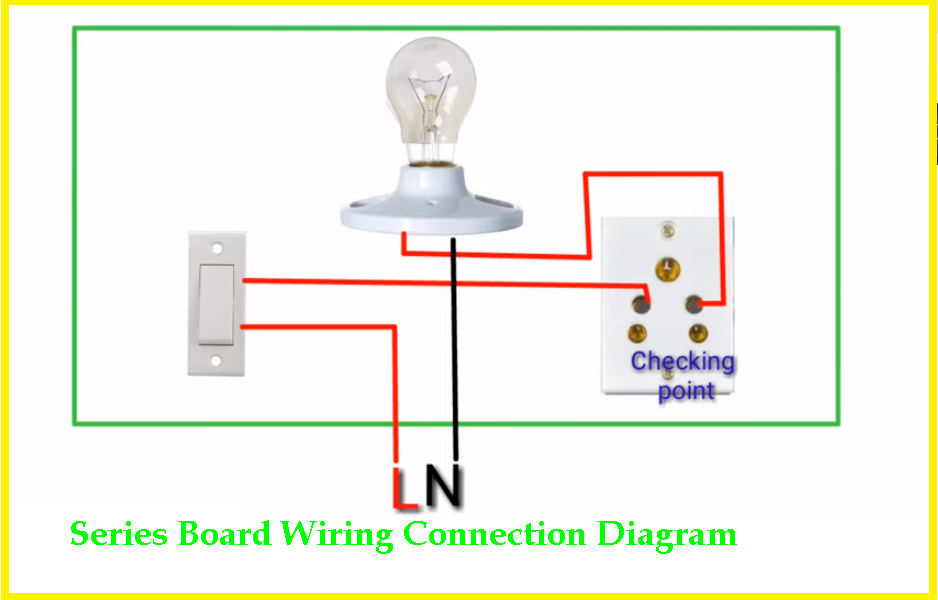

single ignition switch wiring diagram
connection and wiring single ignition switch
single switch installation standard
single ignition switch controls one or more preliminary points from a single location
warning: before carrying out any manipulations, remember to cut off the power supply to your board, and check that there is no current using a tester.
single ignition switch wiring diagram
single-ignition electrical installation standard
the switch height lays between 0.90 m and 1.30 m from the finished floor
conductor section 1.5 mm² control on 8 lighting points maximum
the circuit must be protected by a 16 A circuit breaker or a 10 A fuse
electrical connection single ignition switch
Materials needed:
1 single switch
1 circuit breaker 16 A or fuse 10 A
1.5 mm² copper conductor wires (blue, red, violet)
Necessary tools :
screwdriver (flat, cruciform)
wire stripper
cutting pliers
single ignition switch wiring diagram
connection and wiring single ignition switch
single switch installation standard
single ignition switch controls one or more preliminary points from a single location
warning: before carrying out any manipulations, remember to cut off the power supply to your board, and check that there is no current using a tester.
single ignition switch wiring diagram
single-ignition electrical installation standard
the switch height lays between 0.90 m and 1.30 m from the finished floor
conductor section 1.5 mm² control on 8 lighting points maximum
the circuit must be protected by a 16 A circuit breaker or a 10 A fuse
electrical connection single ignition switch
Materials needed:
1 single switch
1 circuit breaker 16 A or fuse 10 A
1.5 mm² copper conductor wires (blue, red, violet)
Necessary tools :
screwdriver (flat, cruciform)
wire stripper
cutting pliers
